Flower-Shaped Soft Robot Could Make Brain Monitoring Less Invasive
Inserted into the skull through a hole just 1 to 2 centimeters wide, the flower-shaped device unfurls a flexible array of sensors that contact the brain’s surface, allowing it to monitor electrical activity, researchers reported in the journal Science Robotics.
A successful demonstration on a minipig suggests the device could be a less invasive way to place sensors directly on the brain, which currently can require removal of a large section of skull.
The device is known as a soft robot: soft, because unlike traditional mechanical devices, it’s made of flexible materials, and robot, because its sensory apparatus moves, opening like a flower once implanted (SN: 3/3/21).
“Of all the soft robotics that I’ve seen, it’s kind of the one that you say, ‘Wow, this is really going to change, potentially, the way we do things in neurosurgery,’” says Joseph Madsen, a neurosurgeon at Harvard Medical School who was not involved in the study. “The idea of a robot that kind of internally unfolds and goes over the brain is just very elegant.”

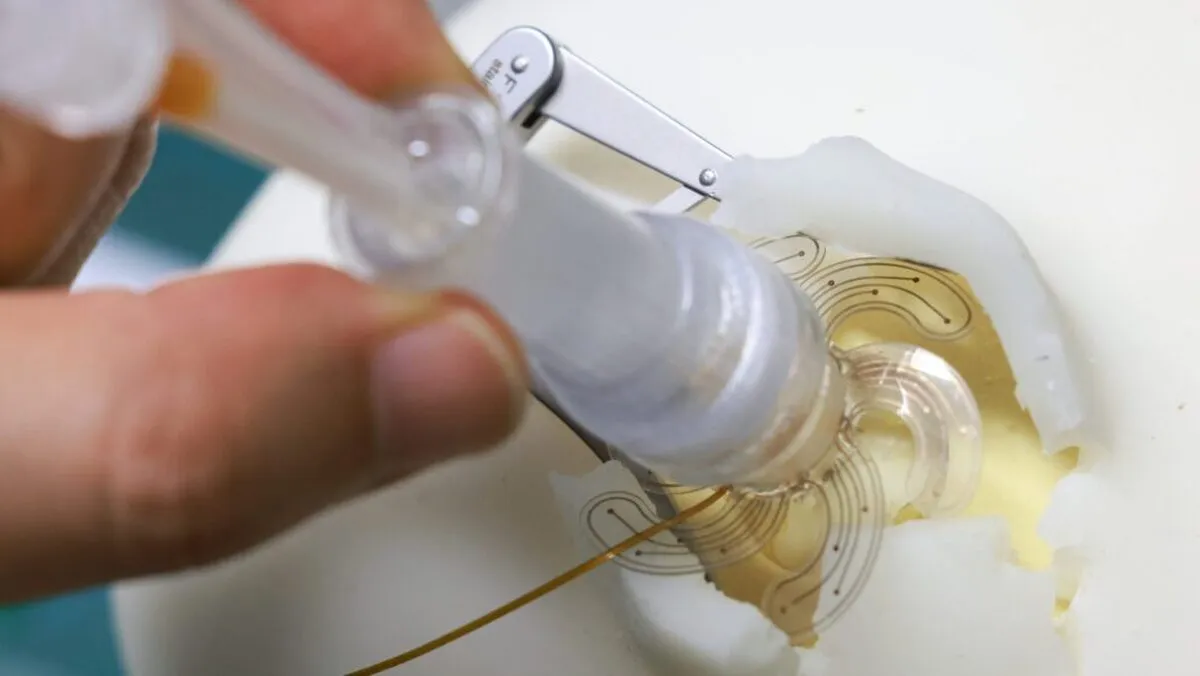

The robotic device consists of a central hub surrounded by six flat, petal-shaped sensors made of a soft, flexible material. At first, the petals are inverted into the hub. “It’s a bit like a glove where … you flip it outside in,” says Stéphanie Lacour, a bioengineer at École Polytechnique Fédérale de Lausanne in Geneva.
Once inside the skull, a flow of saline solution through the hub gently forces the petals open, where they then lay flat against the surface of the cerebral cortex. Sensors in each petal signal when they’re in place and then start monitoring the brain, sending information back to a monitor via electrical wires.
Lacour and colleagues tested a prototype in the brain of a minipig, successfully deploying the roughly daisy-sized sensor array inside the skull and recording electrical activity. The technology could be sized up to cover a larger area for human use, Lacour says. Future versions could be bidirectional, she says, not only sensing brain activity but also stimulating it. That might allow the device to stop seizure activity before it begins, stimulate brain areas damaged by stroke or act as a brain-machine interface to allow people to control devices (SN: 2/11/21).
The researchers have created a company to further develop the technology and conduct the additional testing that will be required to gain approval for use in human patients.
